Product specification

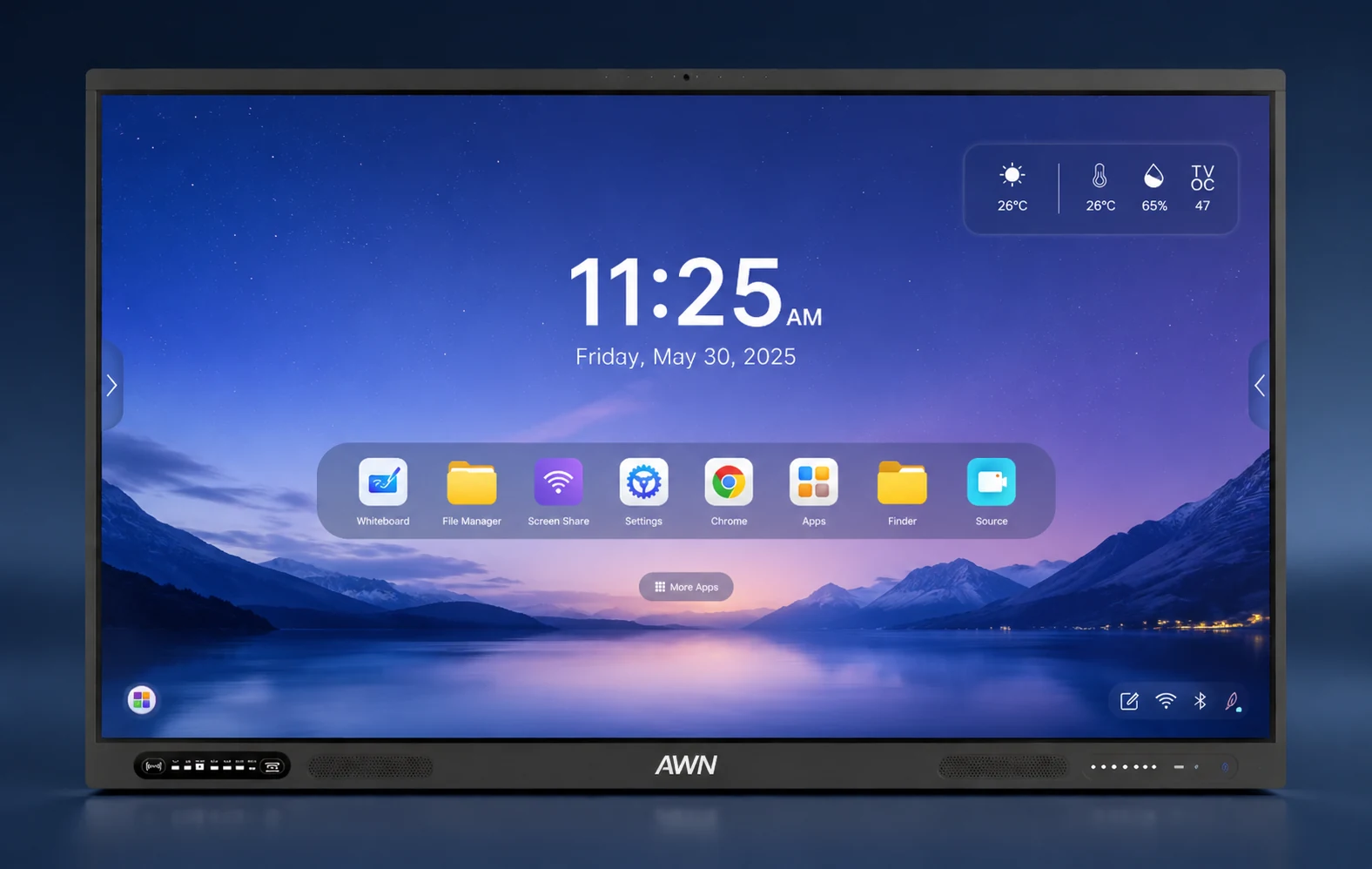

AWN M86 Smart Blackboard
M86 is designed for classrooms that need a durable writing surface with a central smart display and easier installation, maintenance and classroom operations.
Technical specifications
M86 model comparison
Specification
75 inch
86 inch
Diagonal display size
75 inch
86 inch
Bezel color
Aluminum frame, black color
Aluminum frame, black color
Panel type
Ultra HD direct type LED
Ultra HD direct type LED
Active area
1649.66 x 927.93(V) mm
1895.04 x 1065.96(V) mm
Resolution
3840 x 2160 / 60Hz
3840 x 2160 / 60Hz
Pixel pitch
0.429 mm x 0.429 mm
0.4935 mm x 0.4935 mm
Glass hardness
Mohs 7 level
Mohs 7 level
Glass panel
Anti-glare glass with zero bonding
Anti-glare glass with zero bonding
Aspect ratio
16:9
16:9
Contrast ratio
1200:1 typical
1200:1 typical
Dynamic contrast ratio
4000:1
4000:1
Brightness
350 cd/m2
350 cd/m2
Color depth
1.07 billion colors
1.07 billion colors
Viewing angle
178 degrees
178 degrees
Lifespan
50,000 hours
50,000 hours
Touch technology
P-CAP touch
P-CAP touch
Multi touch
Max 40 points, Windows
Max 40 points, Windows
Multi writing
Max 20 points, Windows
Max 20 points, Windows
Auto-calibrate
Yes
Yes
Anti-light
Yes
Yes
Minimum object size
2 mm
2 mm
Accuracy
1 mm over 90 percent area
1 mm over 90 percent area
Response time
<8 ms
<8 ms
System support
Windows 7/8/10/11, Android, Mac, Linux, Chrome OS
Windows 7/8/10/11, Android, Mac, Linux, Chrome OS
Speakers
2.0 speaker system, 2.1 option
2.0 speaker system, 2.1 option
Front speakers
15W x 2, 20W x 2 option
15W x 2, 20W x 2 option
Subwoofer
20W x 1 option
20W x 1 option
Total power amplifier
<=60W
<=60W
Microphone option
Wide-area microphones, 8 microphones, auto switch, disconnectable support
Wide-area microphones, 8 microphones, auto switch, disconnectable support
Camera option
13MP camera, 8MP / 48MP option, 4208 x 3120 at 30fps, 120 degree FOV
13MP camera, 8MP / 48MP option, 4208 x 3120 at 30fps, 120 degree FOV
Front ports
USB 3.0 x3 public for Android and PC, touch out USB-B x1, HDMI 2.0 in x1
USB 3.0 x3 public for Android and PC, touch out USB-B x1, HDMI 2.0 in x1
Front keys
Power on/off, signal source, return, main page, menu, volume down, volume up
Power on/off, signal source, return, main page, menu, volume down, volume up
Bottom connections
USB-B touch x1, LAN RJ45 x1, YPbPr IN x1, AV IN x1, AV OUT x1, audio IN option x1, VGA IN option x1, earphone/line out x1, SPDIF OUT x1
USB-B touch x1, LAN RJ45 x1, YPbPr IN x1, AV IN x1, AV OUT x1, audio IN option x1, VGA IN option x1, earphone/line out x1, SPDIF OUT x1
HDMI and control
HDMI IN x2, RS232 x1 DB9 male
HDMI IN x2, RS232 x1 DB9 male
Android USB
Android USB 3.0 x1, Android USB 2.0 x1
Android USB 3.0 x1, Android USB 2.0 x1
OPS slot
80-pin OPS slot
80-pin OPS slot
Wireless
WiFi 5, 2.4GHz + 5GHz, Bluetooth 5.0
WiFi 5, 2.4GHz + 5GHz, Bluetooth 5.0
AWN Central
Android 11.0, upgradeable to Android 13.0
Android 11.0, upgradeable to Android 13.0
Chip
Amlogic T982
Amlogic T982
CPU
High-end quad-core A55, 1.9GHz
High-end quad-core A55, 1.9GHz
GPU
High-end G52 MP2
High-end G52 MP2
Memory
4GB / 8GB DDR4
4GB / 8GB DDR4
Storage
32GB / 64GB / 128GB
32GB / 64GB / 128GB
Compatibility
Windows, Mac, Linux and Chrome OS
Windows, Mac, Linux and Chrome OS
OTA updates
Yes
Yes
Optional sensors
NFC reader/writer, motion sensors, light sensor, air quality monitoring, temperature sensor
NFC reader/writer, motion sensors, light sensor, air quality monitoring, temperature sensor
Power supply
100-240V, 50/60Hz
100-240V, 50/60Hz
Switch on/off
Yes
Yes
Standby consumption
<=0.5W
<=0.5W
Power consumption
Maximum <420W, Eco <75W
Maximum <500W, Eco <75W
Net weight
88 kg +/-2
88 kg +/-2
Gross weight
99 kg +/-2
99 kg +/-2
Screen dimensions
2110.3 x 93.2 x 1207 mm
2110.3 x 93.2 x 1207 mm
Package dimensions
2210 x 222 x 1307 mm
2210 x 222 x 1307 mm
VESA standard
600 x 400 mm
800 x 600 mm
Certifications
CE EMC + LVD, RoHS, REACH, FCC, CCC
CE EMC + LVD, RoHS, REACH, FCC, CCC
Warranty
1 year for the whole product and 3 years for touch parts by default; extendable option
1 year for the whole product and 3 years for touch parts by default; extendable option
Operating temperature
0C to 38C / 32F to 100F
0C to 38C / 32F to 100F
Storage temperature
-20C to 60C / -4F to 140F
-20C to 60C / -4F to 140F
Storage humidity
10 percent to 90 percent
10 percent to 90 percent
Usage humidity
10 percent to 90 percent
10 percent to 90 percent
Accessories
WiFi antenna x4, no-ink pen x2, remote control x1, 1.5m power cord x1, 1.5m HDMI cable x1, 1.5m USB touch cable x1, wall mount kit
WiFi antenna x4, no-ink pen x2, remote control x1, 1.5m power cord x1, 1.5m HDMI cable x1, 1.5m USB touch cable x1, wall mount kit
