Product specification

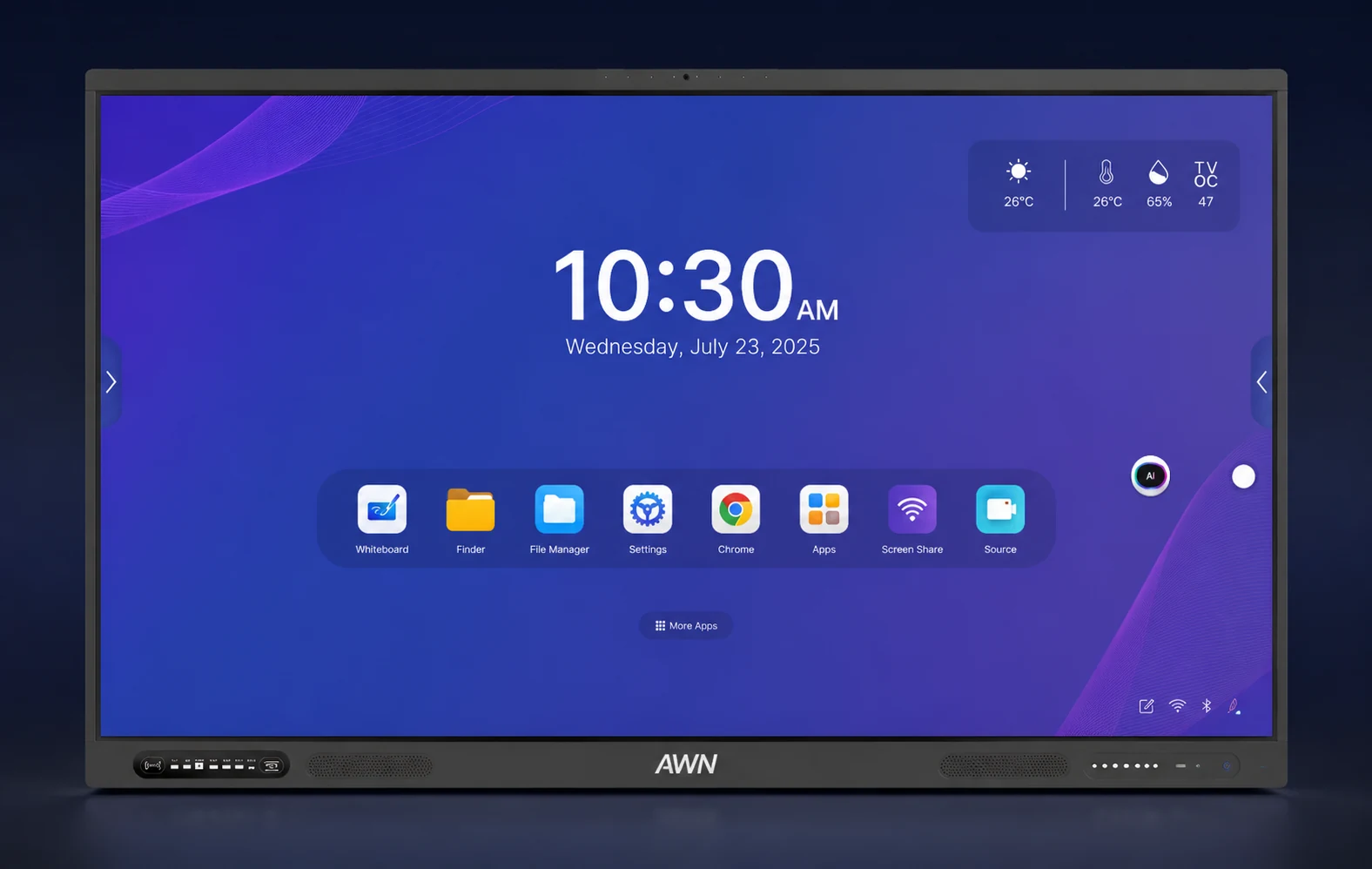

AWN M86LB Smart Blackboard
M86LB is positioned for teachers who want natural blackboard writing with modern multimedia instruction, digital capture and classroom sharing.
Technical specifications
M86LB model details
ModelLT86RK3588
Diagonal display size86 inch
Bezel colorAluminum frame, white color
Panel typeUltra HD direct type LED
Active area1895.04 x 1065.96(V) mm
Resolution3840 x 2160 / 60Hz
Pixel pitch0.4935 mm x 0.4935 mm
Glass hardnessMohs 7 level
Glass panelAnti-glare glass with zero bonding
Aspect ratio16:9
Contrast ratio1200:1 typical
Dynamic contrast ratio4000:1
BrightnessOver 350 cd/m2
Color depth1.07 billion colors
Viewing angle178 degrees
Lifespan50,000 hours
Touch technologyIR touch
Multi touchMax 40 points, Windows
Multi writingMax 20 points, Windows
Touch precision1 mm over 90 percent area
Auto-calibrationYes
Anti-lightYes
Minimum object size2 mm
Touch response timeFirst point <2 ms, continuation <8 ms
Supporting OSWindows 7/8/10/11, Android, Mac, Linux, Chrome OS
Front speakers15W x 2, 20W x 2 option
Subwoofer20W x 1
Total power amplifier<=60W
Microphone typeWide-area microphones
Microphones8 microphones with auto switch, disconnectable support
Camera option48MP / 64MP camera, 4208 x 3120 at 30fps, 120 degree FOV
Front portsType-C x1, HDMI IN x3, USB 3.0 x2, USB-B x1
Front keysPower on/off, signal source, setting, ECO, menu, volume down, volume up
NFC and fingerprintNFC and fingerprint module support
Bottom connectionsEarphone x1, MIC IN x1, SPDIF OUT x1, RS232 x1, touch USB-B x1, HDMI IN x1, HDMI OUT x1, RJ45 x1, Type-C OUT x1, Android USB 2.0 x1, Android USB 3.0 x1, TF card x1
WirelessWiFi 5 + WiFi 6 + AP, Bluetooth 5.2
OPS slot80-pin OPS slot
AWN CentralAndroid 13.0, Rockchip RK3588
CPUQuad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
GPUMali-G610 MC4
Memory8GB / 16GB / 32GB DDR4 RAM, 128GB / 256GB flash
System compatibilityWindows, Mac, Linux and Chrome OS
Updates and sensorsOTA updates, light sensor, NFC reader/writer and fingerprint module
Power supply100-240V, 50/60Hz
Switch on/offYes
Standby consumption<=0.5W
Power consumptionMaximum <350W, Eco <75W
Net weight95 kg
Gross weight105 kg
Screen dimensions2100 x 1210 mm
Package dimensions2260 x 280 x 1330 mm
VESA standard1008 x 225 x 32 mm
CertificationsCE EMC + LVD, RoHS, FCC, CCC
Warranty1 year for the whole product and 3 years for touch parts by default; extendable option
Operating temperature0C to 40C / 32F to 100F
Storage temperature-20C to 60C / -4F to 140F
Storage humidity10 percent to 90 percent
Usage humidity10 percent to 90 percent
AccessoriesWiFi antenna x3, no-ink pen x2, remote control x1, 1.5m power cord x1, 1.5m HDMI cable x1, 1.5m USB touch cable x1, wall mount kit
