AWN RK3576 Interactive Panel

Product specification

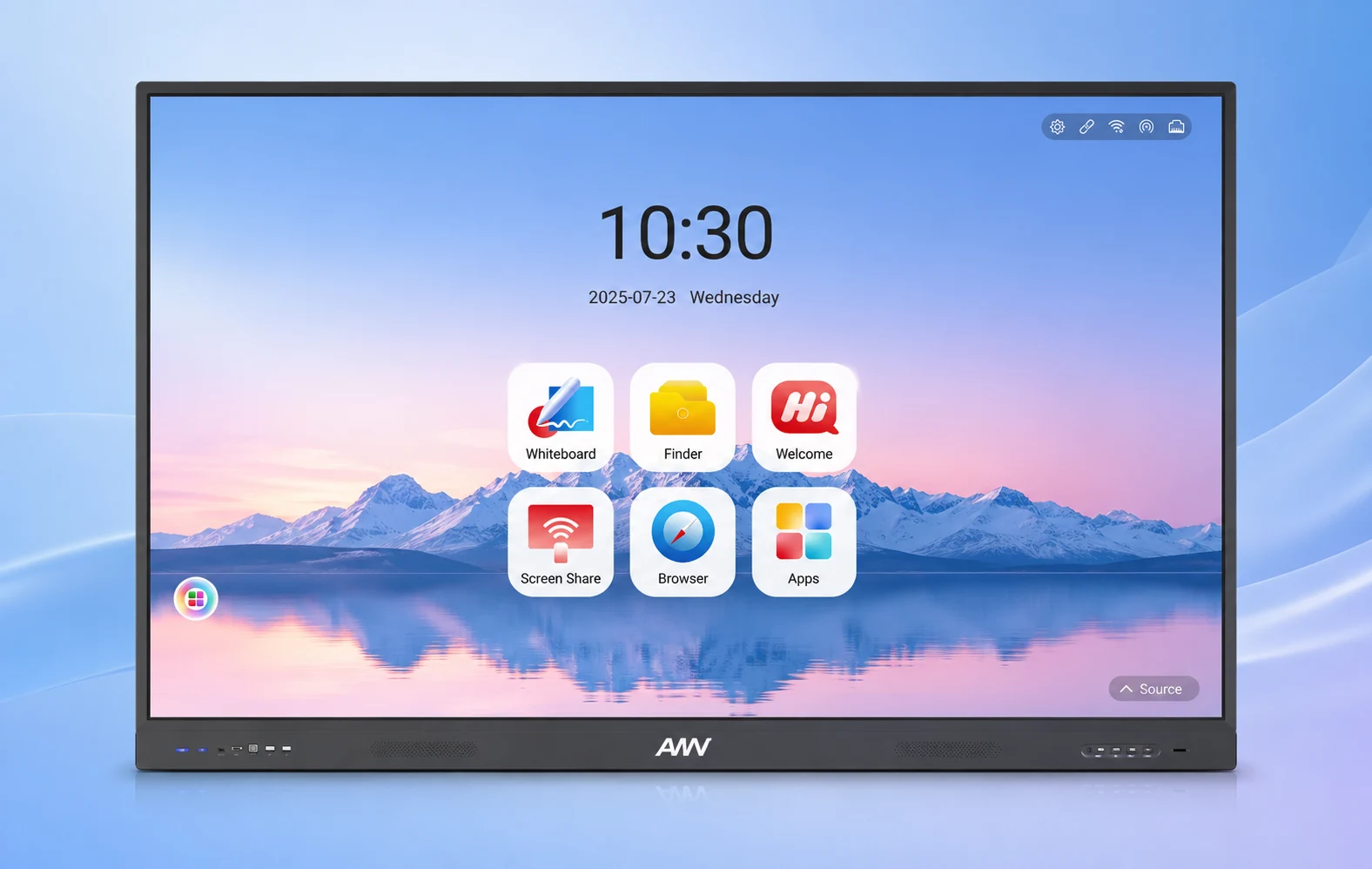

AWN RK3576 Interactive Panel

4K interactive flat panel for smart classrooms, training spaces and enterprise collaboration, with RK3576 performance, Android 14, infrared touch and classroom-ready connectivity.

Request demo Back to category

Technical specifications

RK3576 model comparison

Specification

LTQ65RK3576

LTQ75RK3576

LTQ86RK3576

LTQ98RK3576

Size

65 inch

75 inch

86 inch

98 inch

Panel size

65 inch

75 inch

86 inch

97.5 inch

Resolution

3840 x 2160

Pixel pitch

0.372 x 0.372 mm

0.4296 x 0.4296 mm

0.4935 x 0.4935 mm

0.1625(H) x 0.4875(V) mm

Brightness

350 cd/m2 typical

Contrast

5000:1 typical

4000:1 typical

6000:1 typical

Color

16.7M, 8-bit

Response time

8 ms typical

Viewing area

1428.48(H) x 803.52(V) mm

1649.66(H) x 927.936(V) mm

1895.04(H) x 1065.96(V) mm

2158.85(H) x 1214.35(V) mm

Viewing angle

178(H) / 178(V)

Service life

50,000 hours typical

Android version

Android 14.0

Chipset

RK3576

CPU

ARM 4 x Cortex-A72 @ 2.2GHz + 4 x Cortex-A53

GPU

ARM Mali-G52 MC3/MP3

Storage

8GB RAM + 128GB memory

Android output resolution

3840 x 2160

Network

10/100/1000M Ethernet, WiFi 2.4G/5G

Media formats

MPEG2-4, H.264, H.265, TS, RealMedia; JPG, JPEG, BMP, PNG

Teaching functions

Child lock, wireless projection, full-channel annotation

Backside ports

SPDIF out, RS232, RJ45 in, line in/out, Type-C, touch USB-B, HDMI out/in, Android USB 2.0 x2, Android USB 3.0 x1

Same

Wireless

WiFi 2.4G/5G, WiFi 6 optional; Bluetooth 5.2, 5.4 optional

Touch type

Infrared sensor

Touch points

Android 20 / Windows 40

Touch height

2.5 mm

Supported systems

Windows 7/8/10/11, Mac OS, Android

Ambient light sensor

Supported

Front ports

Power button, Type-C x1, HDMI in x1, touch USB-B x1, USB 2.0 public x2

Same

Camera and microphone

Omnidirectional linear isometric microphone, SNR >=39dB, 8m pickup, echo cancellation, beamforming, noise suppression; 13MP / 48MP camera optional

Same

Speaker power

15W x 2

Standby power

<=0.5W

Power supply

AC100V-240V, 50-60Hz

Total power excluding OPS

<=180W

<=260W

<=340W

<=580W

Work environment

0C-40C; 20%-85% RH no condensation

Storage environment

-10C-60C; 10%-60% RH no condensation

Material

Aluminum frame, tempered glass, metal cover

Shell color

Black; white frame / gray optional

Tempered glass

Hardness >=7, thickness 3.2mm

Machine dimensions

1485(L) x 100.8(W) x 900.1(H) mm

1707.2(L) x 100.8(W) x 1025.3(H) mm

1953.4(L) x 100.8(W) x 1163.9(H) mm

2218.2(L) x 93.8(W) x 1317.7(H) mm

Packing dimensions

1580(L) x 205(W) x 1000(H) mm

1810(L) x 205(W) x 1150(H) mm

2060(L) x 205(W) x 1331(H) mm

2350 x 230 x 1450 mm

VESA

400 x 500 mm, 4 x M8 screws

400 x 600 mm, 4 x M8 screws

400 x 800 mm, 4 x M8 screws

600 x 900 mm, 4 x M8 screws

Net weight

36 kg +/-1.5

50 kg +/-1.5

63 kg +/-1.5

85 kg +/-1.5

Gross weight

44 kg +/-1.5

60 kg +/-1.5

76 kg +/-1.5

100 kg +/-1.5

Accessories

Remote, power cord, warranty card, certificate, touch pen x2, wall mount, HDMI cable, touch cable

Same
