Product specification

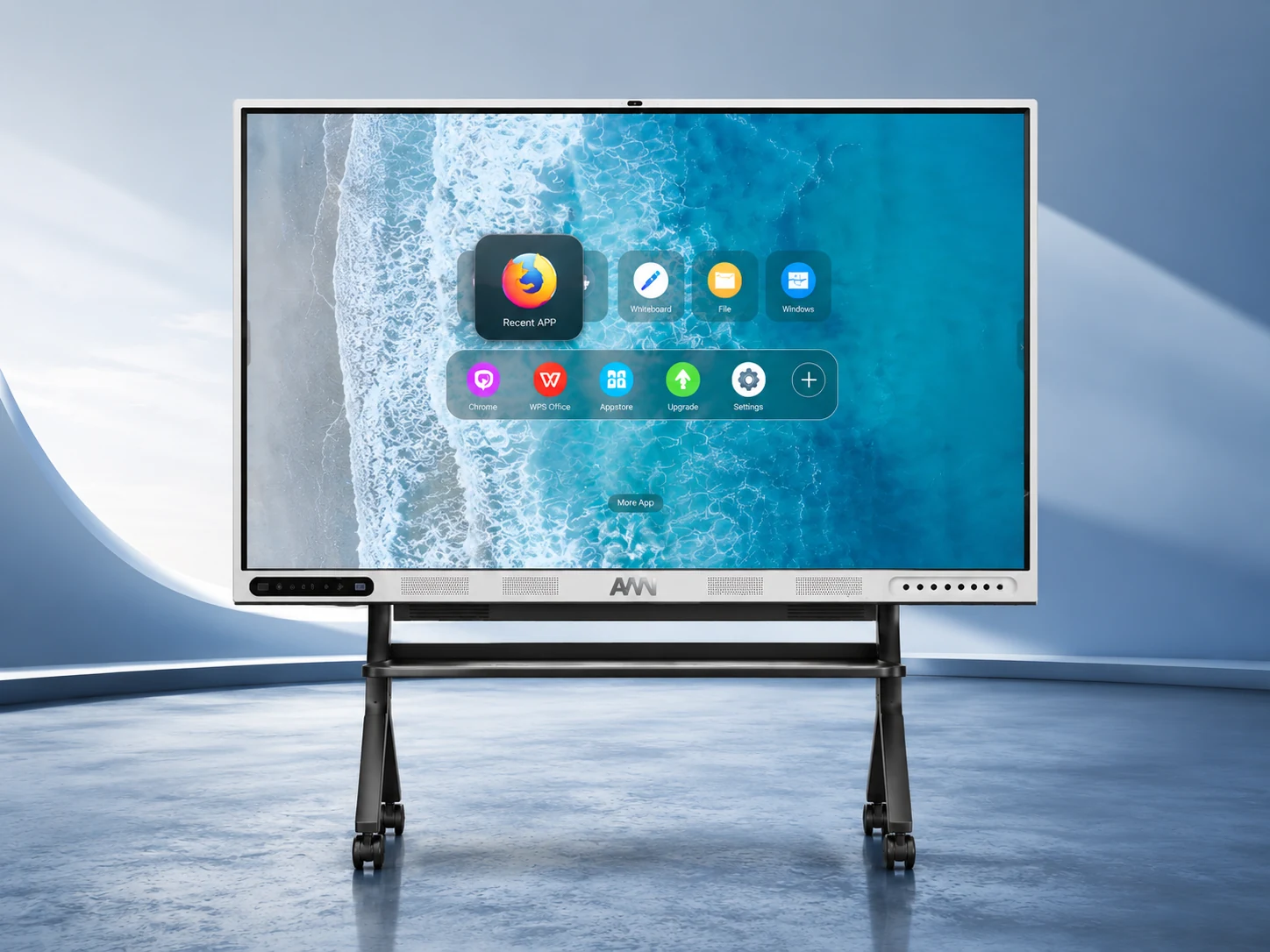

AWN RK3588 Interactive Panel
High-performance LT series interactive display for smart classrooms, enterprise collaboration and AI-assisted teaching workflows.
Technical specifications
RK3588 model comparison
Specification
LT65RK3588
LT75RK3588
LT86RK3588
Diagonal display size
65 inch
75 inch
86 inch
Bezel color
Aluminum frame, white color
Aluminum frame, white color
Aluminum frame, white color
Panel type
Ultra HD direct type LED
Ultra HD direct type LED
Ultra HD direct type LED
Active area
1428.48(H) x 803.52(V) mm
1649.66(H) x 927.93(V) mm
1895.04(H) x 1065.96(V) mm
Resolution
3840 x 2160 / 60Hz
3840 x 2160 / 60Hz
3840 x 2160 / 60Hz
Pixel pitch
0.372 x 0.372 mm
0.429 x 0.429 mm
0.4935 x 0.4935 mm
Glass hardness
Mohs 7
Mohs 7
Mohs 7
Glass panel
Anti-glare glass with zero bonding
Anti-glare glass with zero bonding
Anti-glare glass with zero bonding
Aspect ratio
16:9
16:9
16:9
Contrast ratio
1200:1 typical
1200:1 typical
1200:1 typical
Brightness
450 cd/m2
450 cd/m2
450 cd/m2
Color depth
1.07 billion colors
1.07 billion colors
1.07 billion colors
Viewing angle
178 degrees
178 degrees
178 degrees
Lifespan
50,000 hours
50,000 hours
50,000 hours
Touch technology
IR touch
IR touch
IR touch
Multi touch
Max 40 points, Windows
Max 40 points, Windows
Max 40 points, Windows
Multi writing
Max 20 points, Windows
Max 20 points, Windows
Max 20 points, Windows
Touch precision
1 mm over 90 percent area
1 mm over 90 percent area
1 mm over 90 percent area
Touch response
First point <2 ms, continuation <8 ms
First point <2 ms, continuation <8 ms
First point <2 ms, continuation <8 ms
Supported OS
Windows 7/8/10/11, Android, Mac, Linux, Chrome OS
Windows 7/8/10/11, Android, Mac, Linux, Chrome OS
Windows 7/8/10/11, Android, Mac, Linux, Chrome OS
Front speakers
15W x 2, 20W x 2 optional
15W x 2, 20W x 2 optional
15W x 2, 20W x 2 optional
Subwoofer
20W x 1
20W x 1
20W x 1
Total power amplifier
60W
60W
60W
Microphone
8 wide-area microphones, echo cancellation, omnidirectional
8 wide-area microphones, echo cancellation, omnidirectional
8 wide-area microphones, echo cancellation, omnidirectional
Camera
48MP AI camera, 4208 x 3120 at 30fps, 120 degree FOV
48MP AI camera, 4208 x 3120 at 30fps, 120 degree FOV
48MP AI camera, 4208 x 3120 at 30fps, 120 degree FOV
Front ports
Type-C x1, HDMI IN x1, USB 3.0 x3, USB-B x1
Type-C x1, HDMI IN x1, USB 3.0 x3, USB-B x1
Type-C x1, HDMI IN x1, USB 3.0 x3, USB-B x1
Front keys
Power, source, setting, ECO, menu, volume down, volume up
Power, source, setting, ECO, menu, volume down, volume up
Power, source, setting, ECO, menu, volume down, volume up
NFC and fingerprint
NFC reader/writer, fingerprint module
NFC reader/writer, fingerprint module
NFC reader/writer, fingerprint module
Bottom connections
RJ45 out/in, SPDIF out, mic in, earphone, HDMI out, Type-C out, VGA audio in, VGA, RS232
RJ45 out/in, SPDIF out, mic in, earphone, HDMI out, Type-C out, VGA audio in, VGA, RS232
RJ45 out/in, SPDIF out, mic in, earphone, HDMI out, Type-C out, VGA audio in, VGA, RS232
Side connections
HDMI in x3, touch USB x3, DP, Type-C in, Android USB 3.0, USB 3.0 sharing x2, TF card
HDMI in x3, touch USB x3, DP, Type-C in, Android USB 3.0, USB 3.0 sharing x2, TF card
HDMI in x3, touch USB x3, DP, Type-C in, Android USB 3.0, USB 3.0 sharing x2, TF card
WiFi
IEEE 802.11a/b/g/n/ac/ax, 2x2 MIMO, 2.4GHz and 5GHz, WiFi 6 hotspot
IEEE 802.11a/b/g/n/ac/ax, 2x2 MIMO, 2.4GHz and 5GHz, WiFi 6 hotspot
IEEE 802.11a/b/g/n/ac/ax, 2x2 MIMO, 2.4GHz and 5GHz, WiFi 6 hotspot
OPS slot and Bluetooth
80-pin OPS slot, Bluetooth 5.4
80-pin OPS slot, Bluetooth 5.4
80-pin OPS slot, Bluetooth 5.4
Android system
Android 15.0, Rockchip RK3588
Android 15.0, Rockchip RK3588
Android 15.0, Rockchip RK3588
CPU
Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
GPU and NPU
Mali-G610 MC4, 6T NPU
Mali-G610 MC4, 6T NPU
Mali-G610 MC4, 6T NPU
Memory
16GB DDR4 RAM, 256GB flash
16GB DDR4 RAM, 256GB flash
16GB DDR4 RAM, 256GB flash
Updates and sensors
OTA, light sensor, temperature/humidity/air quality sensor
OTA, light sensor, temperature/humidity/air quality sensor
OTA, light sensor, temperature/humidity/air quality sensor
Power supply
100-240V, 50/60Hz; standby <= 0.5W
100-240V, 50/60Hz; standby <= 0.5W
100-240V, 50/60Hz; standby <= 0.5W
Power consumption
Maximum <290W, Eco <75W
Maximum <320W, Eco <75W
Maximum <350W, Eco <75W
Net weight
45 kg +/-2
55 kg +/-2
70 kg +/-2
Gross weight
55 kg +/-2
68 kg +/-2
85 kg +/-2
Screen dimensions
1470.9 x 97.5 x 897.5 mm
1692.1 x 97.5 x 1021.9 mm
1943.4 x 97.5 x 1166 mm
Package dimensions
1622 x 190 x 1038 mm
1842 x 190 x 1163 mm
2090 x 190 x 1307 mm
VESA
600 x 400 mm
600 x 400 mm
800 x 600 mm
Certifications
CE EMC + LVD, RoHS, FCC, CCC, EDLA
CE EMC + LVD, RoHS, FCC, CCC, EDLA
CE EMC + LVD, RoHS, FCC, CCC, EDLA
Warranty
1 year whole product, 3 years touch parts by default; extendable option
1 year whole product, 3 years touch parts by default; extendable option
1 year whole product, 3 years touch parts by default; extendable option
Operating environment
0C to 40C, storage -20C to 60C, humidity 10%-90%
0C to 40C, storage -20C to 60C, humidity 10%-90%
0C to 40C, storage -20C to 60C, humidity 10%-90%
Accessories
WiFi antenna x2, stylus pen x2, remote, power cord, HDMI cable, USB touch cable, wall mount kit
WiFi antenna x2, stylus pen x2, remote, power cord, HDMI cable, USB touch cable, wall mount kit
WiFi antenna x2, stylus pen x2, remote, power cord, HDMI cable, USB touch cable, wall mount kit
